Custom Controller Mapping in Unreal Engine

Having access to a driving simulation lab, I often work with sim gears like steering wheels and pedals. Mapping them in Unity is as simple as mapping keyboard, mouse, and controller, but it requires more work in Unreal Engine.

RawInput

RawInput is what we use to map unorthdox controllers in Unreal Engine. Unlike Unity, it simply does not detect unorthdox controllers unless we explicitly set up the project.

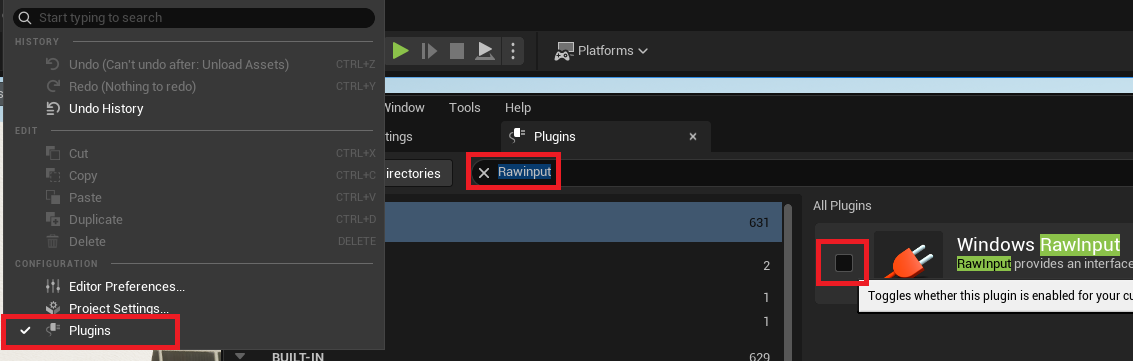

Enable the RawInput plugin under Edit - Plugin.

For each undetected controller, we provide Unreal Engine with its Vendor ID, Product ID, No. Axes and No. buttons.

Controller ID

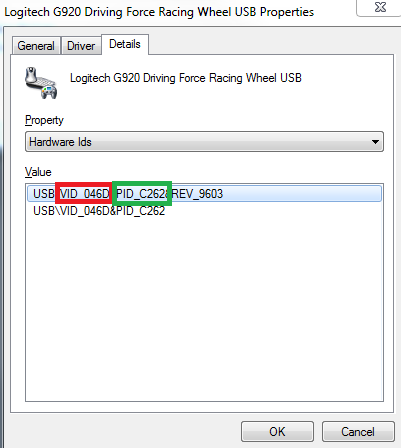

Vendor ID and Product ID are hexadecimal values for each device recognised in Device Manager

Here, the Vendor ID is 0x046D (VID_046D) and Product ID 0xC262(PID_C262).

Type in the IDs in Edit - Project Settings - RawInput

Axes and Buttons

Unreal Engine uses Generic USB Controller Axis/Button to receive inputs from unrecognised devices. All we need to do is allocate them to each device and memorise which does what because as far as I know there is no way to assign unique name to each device and generic input.

If a controller supports 2 axes and 6 buttons (Fightpad?), simple add 2 axes properties and 6 button properties to the device configuration. Each property will broadcast one axis (or button) input. The order in which each axis and button is assigned to a property seems to be unique for each device.

In this example, the x and y axis input of the controller will be broadcast to GenericUSBController Axis 1 and 2. I don’t know if 1 will be x - this depends on the controller. Make sure to write it down somewhere once you figure it out.

Unticking Enabled will make Unreal Engine ignore the input coming from that axis (or button). This is useful for preserving available inputs. And this does not mess up the inputs; If a button is assigned to index n, it will stay mapped to that index.
