Docker 101

I’m doing a course that uses Docker.

Docker

Docker provides light-weight isolated execution environments. This is similar to VMs, but is much more lighter and each environment (container) shares the same kernel.

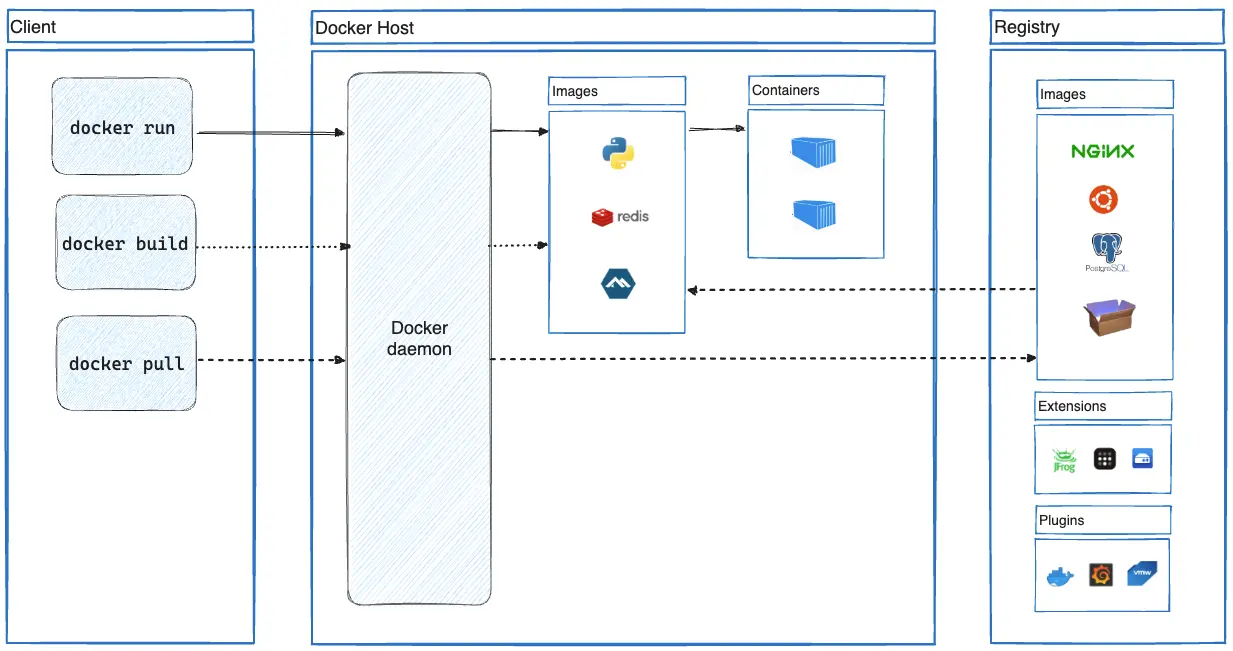

Architecture

Docker can be broken into 4 main components: Client, Daemon, Image, Container

Docker uses a client-server architecture whereby Docker Client sends REST API to Docker Daemon. This means that client and daemon needs not be running on the same system.

Docker Client is what we interact with. Commands like docker run or docker build sends API requests to Docker Daemon to carry out the tasks. Daemon is also known as dockerd or engine (Though, it seems engine could refer to the whole client-server architecture).

Container is an isolated execution environment. Everything inside the container runs independent to other containers, and even to the operating system.

Image defines what a Container should run - Python, Node.js, etc.

Using Docker Client

Managing Images

docker pull [tag] fetches an image from Docker Hub. This is similar to cloning a Github repo.

docker images lists all locally-available images.

docker image rm [tag] removes the local image.

docker image tag [tag] [new_tag] assigns a new tag to the existing image. Removing the newly-tagged image does not delete the original image.

Running an Image

docker run [args] [tag] [container_args] creates and runs the local image. By default the running container will occupy the terminal and exit as soon as the execution is done.

-d runs the container detached, in the background.

By default, Docker attaches stdout and stderr to the process. You can specify which stream to attach with -a:

-a stdout -a stderr -a stdin. I don’t know the use of -a stdin alone.

You can keep the stdin open with -i. That is, for interactive applications, you can use the terminal to provide inputs.

For applications that use ports, -p or -P maps the container’s ports to the system’s.

-p <in>:<out> maps the out port of the container to the system’s in port. For example: 8000:80 maps the container port 80 (HTTP) to the system port 8000. Hence, localhost:8000 opens the web server running in the container.

-P does this automatically, mapping to random available ports.

Managing Containers

docker container list lists all currently-running (or paused) containers. docker ps is an alias to this command. -a will show all containers, including the stopped ones.

The reason -a exists is because stopped containers can be re-run. This eliminates the need to create a new docker everytime to run an image again.

docker container remove [id] (docker container rm or docker rm) removes the container specified by the id. To remove all stopped containers: docker container prune.

docker restart [id] or docker start [id] to start or restart a container. restart is more robust in that it can be used on stopped containers too, whereas start doesn’t work on paused containers.

docker pause [id] docker unpause [id] are self-explanatory.

docker stop [id] and docker kill [id] kill the container. The difference is that stop is graceful (SIGTERM and then SIGKILL after a while) but kill terminates immediately (SIGKILL)

[id] can be replaced with name. When docker run, it assigns a random name along with a unique ID to the container. By using --name str when running an image, it will assign that name instead.

You can change the name of an existing container using docker rename [id] [str].

Dockerfile

Dockerfile defines how an image should be built.
Use docker build -t [name] [path] to build an image and name it.

A docker image can be created using another image as a base. This is called image layer. For example, an image can have Python3 installed on Ubuntu, and another image can be created from this image installing requirements.txt.

Syntax

Every Dockerfile starts from a base image. FROM defines it.

FROM python:3.12: use Python:3.12 image as base image
FROM scratch: Start clean, with an empty image.

base image needs to exist locally. If it doesn’t, Docker will first pull it from Docker Hub.

WORKDIR changes the current directory. This affects subsequent layers.

COPY [src] [dst] copies from host to container

RUN executes a shell command on the container

EXPOSE [num]/[ptcl] tells Docker that the image uses [num] port for [ptcl] protocol. Users of this image can then run -p or -P to map those ports.

ENV <key>=<value> self-explanatory.

CMD ["args", ...] executes the commands upon running the image.

An example Dockerfile:

FROM python:3.12
WORKDIR /usr/local/app

# Install the application dependencies
COPY requirements.txt ./
RUN pip install --no-cache-dir -r requirements.txt

# Copy in the source code
COPY src ./src
EXPOSE 5000

# Setup an app user so the container doesn't run as the root user
RUN useradd app
USER app

CMD ["uvicorn", "app.main:app", "--host", "0.0.0.0", "--port", "8080"]
